Product Name:

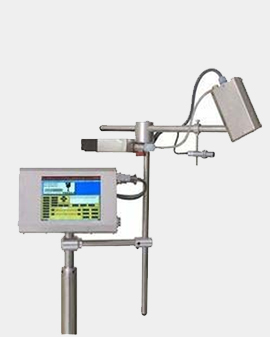

Maplejet PD53 Printer
FEATURES
Resolution
- 180 DPI- ( Print Height =53 mm)
- 360 DPI -( Print Height= 26 mm)
Max Print Speed
- 60M/Min
Height Range of Printable Characters
- 1-53 mm
Printable Languages
- All available on request
Number of Fonts
- Six pre loaded fonts (user defined)
Logo Printing Option
- Yes
Message Component Combination
- Text+Date+Time+ Logo+ Counter+ Shift+ Barcode+External Data+Basic Shapes
Barcode
- All major Barcode symbologies supported (1D & 2D)
Counter
- Various Counter Options ( Ascending, Desending,External Data, Counter, Time)
Print Module Angle Adjustment
- 0-180 °
SPECIFICATIONS
Body Material
- Stainless Steel
Weight with Stand
- 24 KG
Controller Dimension
- 300*192*60 mm
Display Screen
- 8.4˝Color TFT LCD with Industrial Touchscreen
Printing Channels
- 2 Channels with Separate Messages
Print Module Connection
- Expandable up to 6 heads
Connectivity
- Computer, PLC,Weighing Device, Barcode Reader
Connection Ports
- USB, RS232
External Database Print Capacity
- More than 1 Milion Records
