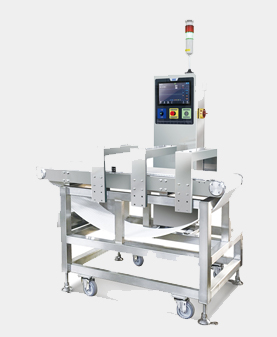

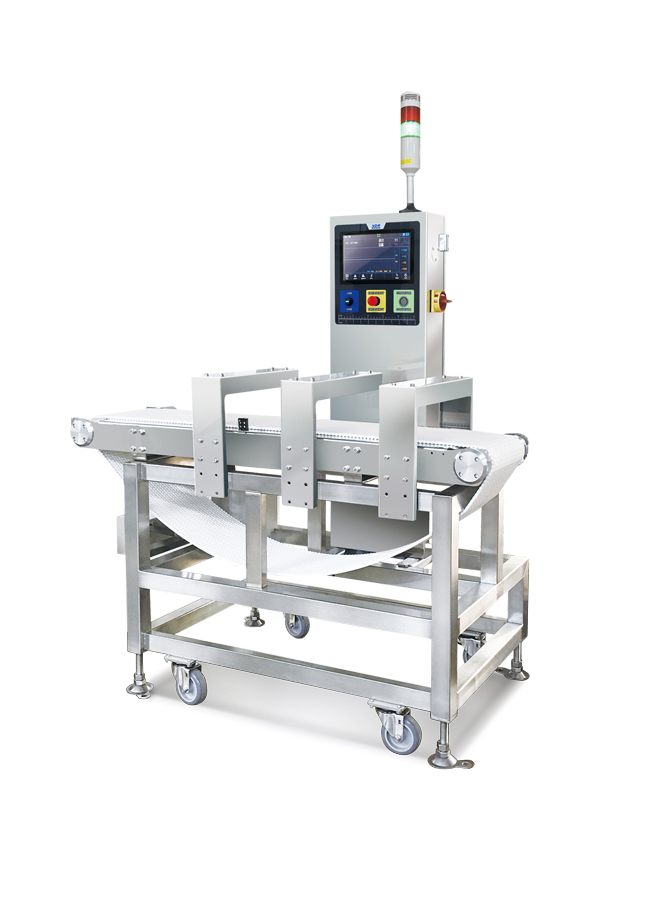

Product Name:
NAD4000 Series-Alcon
Specifications:
MODEL
- NAD4000
Passing Width(PW)
- 240mm
Passing Height(PH)
- Min.50 & Max.150mm (adjustable by every 10mm)
Sensor
- Magnetic
Belt Width(BW)
- 240mm
Material of Belt
- Plastic or Urethane Belt (Selectable)
Conveyor Length
- Min. 1,500mm
Conveyor Height
- 800 (+50 & -20mm)
Effective In-feed Speed
- 15 ~ 30M/Min.
Material of Conveyor
- Stainless Steel 304 (Polishing)
Display
- 10 inch TFT LCD Touch Screen
Control
- Conveyor Button, Power Switch & Emergency Switch
Tower Lamp
- Green & Red(2 Colors) & Buzzer
Allowable In-freed Load
- 1 kg / Unit
Power Supply
- AC220V 50/60HZ, Single Phase
Outputs
- Relay(5A), 1A1B 2EA, DC24V SOL, AC220V 0.2A
Weight
- About 80.0 Kgs
Operating Temperature
- 0oC to 50oC
Estimated Sensitivity(Fe & SUS)
- 1.0mm (Passing Height : 50mm),
- 1.5mm (Passing Height : 100mm),
- 2.0mm (Passing Height : 150mm)
